Invacare TDX SP2 Powered Wheelchair
Contact us for a scripting appointment or a quote with an assistive technology professional.
The TDX SP2 is a complex rehabilitation power chair. Every chair is built to the user's seating, positioning and control needs, so it is prescribed after an assessment and priced by quote rather than sold off the shelf.
How it works
- Book a trial and scripting appointment at our Prestons showroom, or we can come to you at home, in hospital or in residential care.
- An assistive technology professional works with you and your therapist on the prescription and the right configuration.
- We provide a written quote to suit your funding: NDIS, iCare, DVA, aged care (Support at Home) or private purchase.

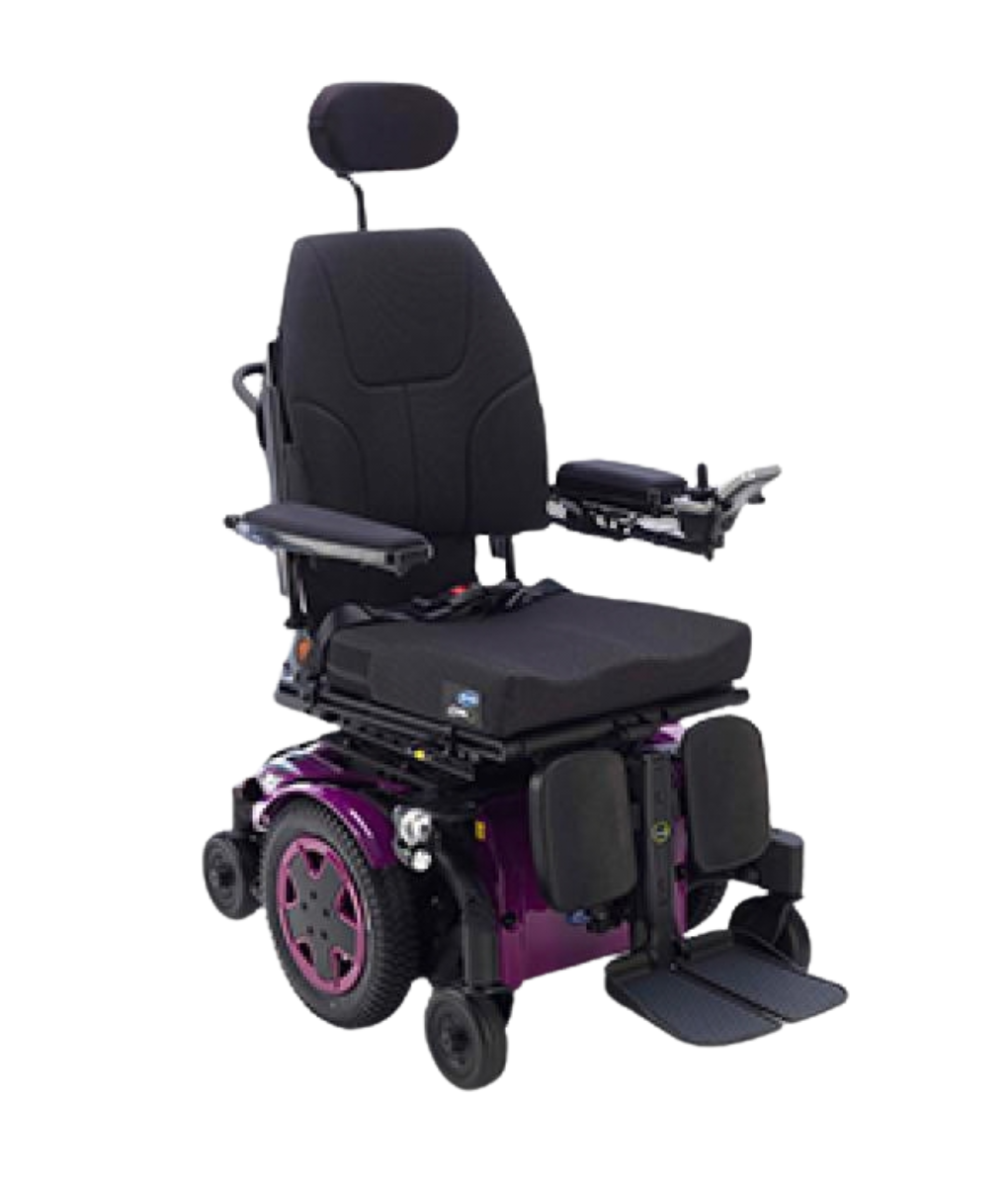

The Invacare TDX SP2 Powered Wheelchair is designed for people who require advanced powered mobility with extensive seating and positioning options. Its mid-wheel drive configuration delivers outstanding manoeuvrability in confined indoor environments while maintaining confident performance across a variety of outdoor surfaces.
Invacare's patented SureStep suspension and Stability Lock technology work together to keep all six wheels in contact with the ground as the wheelchair travels over uneven terrain. The Ultra Low Maxx seating system offers up to 50° of powered tilt and 170° of recline, with an Extended Shear Reduction (ESR) mechanism to minimise shear forces during repositioning.
Key Features
- True mid-wheel drive for exceptional manoeuvrability
- SureStep suspension with Stability Lock
- LiNX smart control system with G-Trac technology
- Ultra Low Maxx modular seating platform
- Powered tilt (up to 50°) and recline (up to 170°)
- Extended Shear Reduction (ESR)
- Wide range of specialist controls – touchscreen remotes, attendant controls, head arrays, sip and puff, alternative joysticks
- Integrated USB charging and optional LED lighting
Specifications
| Safe Working Load | 136kg standard / 180kg Heavy Duty |
| Drive Electronics | LiNX smart control system |
| Battery Type | Group 22 (50Ah) or Group 24 (73.5Ah) |
| Maximum Speed | 10 km/h |
| Driving Range | Up to 31 km |
| Minimum Turning Radius | 50.8cm |
| Base Width | 61cm Narrow Base or 64.8cm HD Base |
| Base Length | 90.2cm |
| Ground Clearance | 7.5cm |
| Seat to Floor Height | 43.8cm, 46.4cm or 48.9cm |
| Seat Width | 30.5cm – 55.9cm |
| Seat Depth | 30.5cm – 61cm |
| Backrest Heights | 35.5cm – 50.5cm |
| Tilt | Up to 50° |
| Recline | Up to 170° |
| Seat Elevation Option | Up to 30cm |
| Legrest Option | LiNX powered centre-mount legrests available |
| Drive Wheels / Castors | 14" / 6" |
| Weight (incl. batteries) | 130kg – 179kg depending on configuration |
| Standards | AS/NZS 3695.1, ISO 7176-19 |
| Warranty | 5 years base and seat frames; 1 year electronics and drivetrain; 12 months batteries |
Configuration Options
- Base: Narrow (61cm) or Heavy Duty (64.8cm)
- Seat width, seat depth and seat-to-floor height to suit the user
- Battery: Group 22 or Group 24
- Drive controls: touchscreen remotes, attendant controls, head arrays, sip and puff, alternative joysticks
- Multiple colour options
Specifications vary with configuration. Your quote will confirm the exact build.
